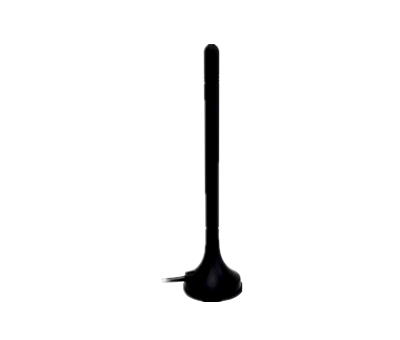

EWX0003A 胶棒天线 (4G/3G/2G)


General specification

Mounting type

Connector Mount

Connector type

Cabel RG174 , SMA-J

Dimensions (mm)

82.5 x φ36

Operating temperature

-40°C to +85°C


Antenna and electrical specifications

Standards

4G/3G/2G

Frequency (MHz)

824~960 , 1710~-2690

VSWR

<3.5 , <4.0

Peak Gain (dBi)

 -1.8~0 , 0.5~3.0

Impendance (Ohm)

50

Max Input Power (W)

5
