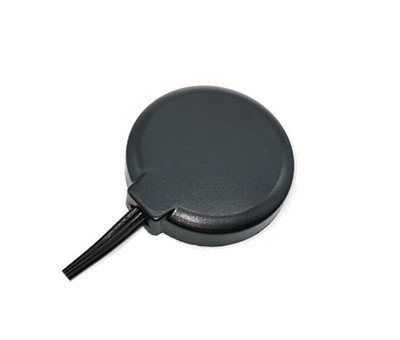

EWB0001A GPS+4G组合天线 (GPS/GNSS/BD/4G)


General specification

Mounting type

Adhesive

Connector type

Cabel RG174 , SMA-J / FAKRA

Dimensions (mm)

φ80.5 x 16.3(H)

Operating temperature

-40°C to +85°C


Antenna and electrical specifications

Standards

GPS/GNSS/BD/4G

Frequency (MHz)

1559 , 1575 , 1602 , 1710~2690

VSWR

2.8 , 3.5 , 2.5 , <3.8

Peak Gain (dBi)

30±1 , -0.4~3.5

Impendance (Ohm)

50

Max Input Power (W)

5
